Guard III Anti-UAV System

Guard III Anti-UAV System

The "Guard III" anti-UAV defense system consists of a radio detection and positioning subsystem, a radio direction finding detection subsystem, a radar detection subsystem, an optoelectronic tracking subsystem, a navigation inducement subsystem, a radio interference countermeasure subsystem and a portable ( Hand-held) radio interference countermeasure subsystem and other equipment and RGS1000 low-altitude early warning and control platform are jointly composed.
  Details

introduction:


The "Guard III" anti-UAV defense system consists of a radio detection and positioning subsystem, a radio direction finding detection subsystem, a radar detection subsystem, an optoelectronic tracking subsystem, a navigation inducement subsystem, a radio interference countermeasure subsystem and a portable ( Hand-held) radio interference countermeasure subsystem and other equipment and RGS1000 low-altitude early warning and control platform are jointly composed. The system consists of radio detection and positioning sub-system, radio direction-finding detection sub-system and radar detection sub-system to detect, identify, locate and track low, slow and small UAV targets, guide the photoelectric tracking sub-system to perform video forensics, and guide the navigation and inducement sub-system. The target is handled by the system or the radio interference countermeasure subsystem. Comprehensive use of multi-spectrum detection, heterogeneous system interconnection, multi-source data fusion, intelligent analysis and decision-making and other technologies to achieve early detection, fast locking, stable tracking, accurate identification and strong countermeasures of low-altitude UAVs, and multiple detection methods complement each other , a variety of frequency band interference interception, which can effectively protect the low-altitude safety of key places all day, all time, and all dimensions.


The system is mainly equipped for public security, armed police, government and other users, and is often used for the prevention and control of drone targets such as prisons/detention centers, large gatherings, and public places.

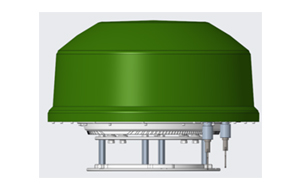

Product Appearance Drawing of Radio Detection Subsystem (Reference)


The radio detection subsystem is a passive detection method, and the system itself does not emit any radio waves. The system can passively receive the image transmission signal and remote control signal of the target UAV, search, collect, find direction and intersect and locate the signal. There are low-slow and small drones invading the defense area.


Product Appearance Drawing of Radar Detection Subsystem (Reference)


The radar detection subsystem detects low, slow and small UAVs by transmitting radio waves and detecting echoes. The radar echo signals of targets in the airspace are collected by the antenna feeder system, filtered, amplified, and down-frequency processed by the radio frequency components and transmitted to the signal. processing board. The signal processing board performs signal accumulation, clutter elimination, etc., and reports the processed radar detection target angle, speed, distance and other information to the data processor and system terminal.

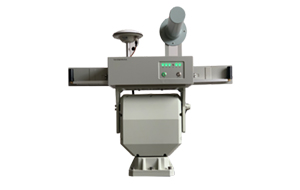

Photoelectric tracking subsystem product appearance diagram (reference)


The optoelectronic tracking subsystem uses visible light cameras and infrared thermal imagers to automatically track and lock low-slow and small UAV targets, and analyzes the morphological features or motion features of the targets through image acquisition and processing to achieve target detection, automatic identification, locking and tracking, and video recording. Review and boot countermeasure devices. Provide command and decision makers with intuitive real-time image information of the target. Under the guidance of the distance, azimuth, and altitude information provided by the command and control system, the drone can be found, tracked, and automatically identified. Optoelectronic equipment can also conduct autonomous search and detection of short-range low-altitude flying objects, and implement auxiliary low-altitude surveillance.



Navigation and inducement subsystem product appearance diagram (reference)


The navigation inducement subsystem simulates the real satellite navigation signal with high precision, controls the positioning output of the low-slow and small UAV navigation system, and sends false geographical coordinates to the UAV, so that it cannot use the navigation system to determine its own position and deviate from the predetermined route. Induce the flight control system to generate wrong flight control instructions, and then control the UAV to control the flight track, make it fall or control the UAV target to the space position set by the user for strike.



Product appearance diagram of radio interference countermeasure subsystem (reference)


The radio interference countermeasure subsystem uses radio frequency technology to interfere with the flight control channel, GNSS signal and image transmission signal of low-slow and small UAVs. UAVs entering the coverage area cannot obtain satellite positioning information. At the same time, UAVs Both the control signal and the image transmission signal to the ground controller were cut off, forcing the drone to return or land and lose the image transmission function.



RGS1000 low-altitude early warning and control platform (reference)


The RGS1000 low-altitude early warning and control platform can be connected to the radio detection sub-system, radar detection sub-system, photoelectric tracking sub-system, radio countermeasure equipment and other UAV detection, identification and countermeasure equipment at the same time. A comprehensive visual anti-UAV command and management platform that integrates the functions of situation display and control, alarm linkage, decision-making and command, record and evidence collection, and event retrieval.



Features:


radio detection subsystem


1) Passive radar, no radiation, hidden work, long-term use will not cause any adverse effects on the human body;


2) It can monitor and track UAV and flight control signals at the same time, and the detection speed is fast, which is convenient for early warning and disposal;


3) 360° omnidirectional coverage, which can capture UAV image transmission and remote control flight control signals hidden between buildings and trees.


radar detection subsystem


1) The ability to monitor low-altitude, slow and small targets, flexible deployment, fully automatic, and all-weather work;


2) The three-coordinate primary radar has altimetry capability;


3) Support unattended operation, reduce the difficulty of work, and avoid the interference of electromagnetic radiation to operators.


Photoelectric tracking subsystem


1) It can carry a long-focus visible light camera, a large-diameter infrared thermal imager, and optional sensing modules such as laser illuminator, laser ranging, positioning and navigation, digital compass, etc., to achieve ultra-long-distance target observation;


2) It can integrate high-definition visible light, cooled/uncooled thermal imaging, and laser illuminators. The advantages of multi-band detection are complementary, the combination of active and passive detection, and multi-source data aggregation and fusion processing. monitoring needs;


3) The automatic tracking module designed with a variety of advanced target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, ensures stable tracking of the target during fast flight and direction change.


Navigational inducement subsystem


1) GPS/GLONASS/BDS/Galileo and other satellite navigation civil frequency bands, covering a wide range;


2) It can drive the target UAV away in the designated direction, induce the UAV to the designated area and make it make a forced landing;


3) Send repressive navigation interference signals so that the UAV cannot receive navigation and positioning signals to achieve defense purposes.


Radio Interference Countermeasure Subsystem


1) It has the ability to effectively interfere with the signals of general-purpose UAVs and model-modified UAVs, causing them to return or make forced landings;


2) The frequency range of navigation signal processing includes: GPS, GLONASS, Beidou, Galileo and other navigation systems;


3) The working mode of data link processing and navigation signal processing can be freely selected or set by the user.



Application scenarios:


It is mainly used for low-altitude security protection in key places such as airports, prisons, nuclear, biological and chemical industries, conference centers, office buildings, oil fields, and oil depots.

  Parameter

Model name

Guard III anti-uav defense system

Radio detection subsystem

1. Operating distance: ≥5 km

2. Frequency: 0.3-6 ghz

3. Direction finding accuracy: 3 ° (RMS)

4. Coverage: 360 °

5. Covering pitch: 0 ° ~ 70 °

6. Height Coverage: 0-1000m

7. Detection Object: remote control signal, image transmission signal

8. Communication Interface: Ethernet (RJ45)

9. Power supply: AC220V

10. Power consumption: ≤100W

11. Size: ≤1358 * 1358 * 541(mm)

12. Weight: 30Kg

Radar Detection Subsystem

1. Action distance: ≥5 km (DJI Sprite 4)

2. Radar Band: Ku

3. Technical system: LINEAR frequency modulation pulse

4. Scanning mode: Azimuth Scanning + pitch frequency scanning

5. Pitch range: 0 ° ~ 40 °

6. Distance accuracy: ≤10m

7. Azimuth accuracy: ≤0.6 °

8. Pitch accuracy: ≤0.6 °

9. Data rate: 6s

10. Target capacity: ≥200 batches

11. Power supply: AC220V

12. Power consumption: ≤160W

13. Size: ≤610 × 270 × 440(mm)

14. Weight: 26Kg

Photoelectric tracking subsystem

1. Operating distance: visible light ≥3 km, infrared ≥3 km

2. Infrared Detector: refrigerated mercury cadmium telluride (MCT) infrared focal plane

3. The spectral range is from 3.7 μm to 4.8 μm

4. Resolution: 640 × 512

5. NETD: better than 20MK

6. Lens focal length: 22-450mm continuous zoom lens

7. Infrared sensor: 1/1.8′ star-level CMOS, ICR color black

8. Resolution: 1920 × 1080

9. Focal length: 12-860mm, HD electric zoom lens

10. FOG transmission: optical/electronic dual fog transmission is supported

11. Tracking mode: manual, automatic tracking, support radar linkage

12. Tracking function: built-in multiple tracking algorithms, support multi-target detection, automatic capture, temporary occlusion and so on

13. Windows: double/triple windows, 2/3 band sensors can be carried at the same time

14. Horizontal range: N × 360 ° continuous rotation, after power failure can be mechanically locked

15. Pitch Range: -90 ° ~ + 90 ° , with soft limit function, program can be set

16. Rotation Speed: horizontal 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s

17. Power supply: AC220V

18. Power consumption: ≤500W

19. Size: ≤572mm × 472mm × 655mm

20. Total weight: ≤90kg

Navigation seduction subsystem

1. Spoofing frequency: GPS/GLONASS/BDS (standard) , expandable to up to 7 frequencies

2. Range: 60 km (decoy)/30 km (jamming)

3. Onset time: ≤3 seconds

4. Accuracy of fixed-point guidance: Error ≤50m (continuous guidance is required)

5. Course control accuracy: < 0.5 ° (with high radar data)

6. Fixed-point control mode: automatic

7. Coverage Azimuth: 0 ° ~ 360 ° (by SERVO + directional antenna to achieve + automatic north-seeking)

8. Coverage pitch: -15 ° ~ 60 ° (via SERVO + directional antenna + automatic north seeking)

9. Power supply: AC220V

10. Power consumption: ≤200W

11. Size: ≤380 * 250 * 120(mm)

12. Weight: 20Kg

Fixed radio interference counter subsystem

1. Operating distance: ≥0.5 km (0.4 ghz, 0.9 ghz) , ≥1.5 km (2.4 ghz, 5.8 ghz, 1.5 ghz)

2. Operating bands: 420-440MHz, 840-940MHz, 1570-1670MHz, 2400-2500MHz, 5700-5900MHz

3. Modulation type: sweep frequency

4. Beam coverage: horizontal ≥60 ° * vertical ≥45 °

5. 360 ° * vertical ≥0 ° ~ 90 °

6. Module Power: 0.4 GHZ20W, 0.9 ghz20w, 1.5 ghz10w, 2.4 ghz20w, 5.8 ghz5w

7. The rotating speed of the head is 0.01 ° ~ 12 °/s

8. Equipment Linkage: radar detection/spectrum detection/photoelectric detection + orientation (head-RRB-

9. Power supply: AC220V

10. Power consumption: ≤300W

11. Size: ≤651 * 286 * 330(mm)

12. Weight: 20Kg

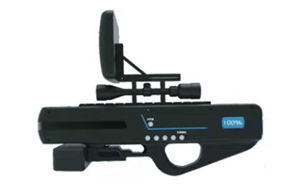

Portable radio interference suppression subsystem

1. Operating distance: ≥1.5 km

2. Operating Band: 0.4 ghz, 0.9 ghz, 1.5 ghz, 2.4 ghz, 5.8 ghz

3. Output Power: 0.4 ghz 20W, 0.9 ghz 20W, 1.5 ghz 10W, 2.4 ghz 20W, 5.8 ghz 5W

4. Antenna gain: 0.4 ghz 5DB, 0.9 ghz 7db, 1.5 ghz 12DB, 2.4 ghz 10DB, 5.8 ghz 10DB

5. Battery capacity: 7200mAh

6. Fuselage size: 685mm * 230mm * 80mm (mm)

7. Weight: 4.8 kg

RGS1000 low altitude early warning control platform

1. Integrated Management and display: platform integrated design, centralized management and control, centralized display, more efficient operation

2. Distributed: support distributed deployment, Device Control Service, service scheduling service distributed deployment, support by region deployment, support multi-client simultaneous use, support distributed streaming server technology

3. Deployment Display: displays deployment information for detection and interception equipment

4. Multi-screen display: support video preview, electronic map, video monitoring, video playback and information management split-screen display, support multiple video preview interface split-screen display

5. Log information: support query run log, alarm log, Operation Log and other information, support by organization, equipment, time and other conditions query log information

6. System settings support setting map address, support setting local storage path, support personal password modification, support connection mode settings, support automatic variable parameter settings, support target linkage parameter settings
