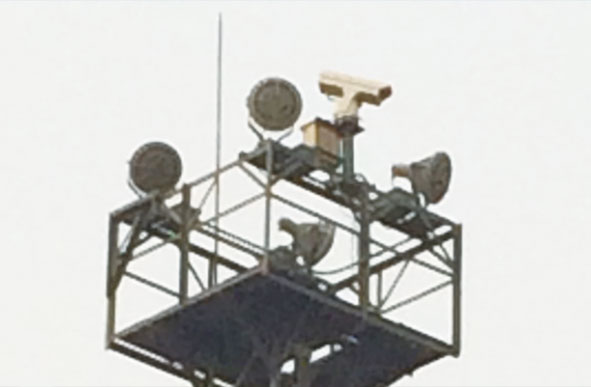

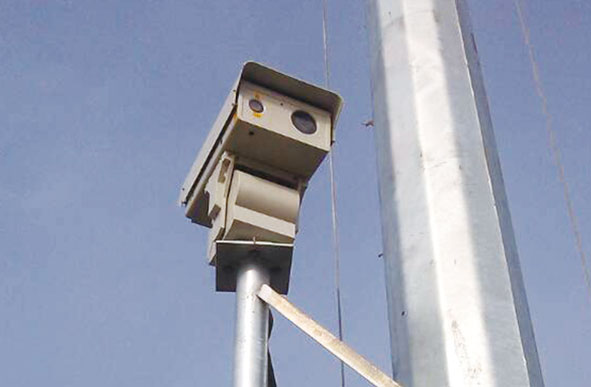

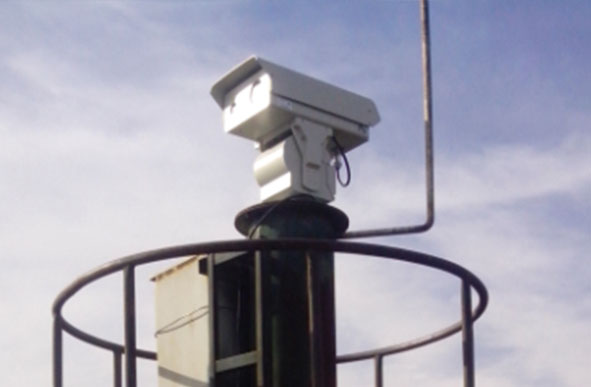

This system is mainly composed of three parts: front-end image acquisition system, video transmission system, back-end monitoring management and command system. The system meets the needs of local monitoring and central networking multi-level networked video monitoring. It can monitor the safety situation of the oilfield in real time 24 hours a day, reduce the labor intensity of the safety monitoring personnel, and provide a strong guarantee for the command of the monitoring center, so that the dispatchers of the monitoring centers at all levels can monitor the on-site images sent from the remote end, intuitive, accurate, and accurate. Real-time understanding of the actual situation of each work area. After the data of the front-end image acquisition system is transmitted to each acquisition station, operation area, and factory monitoring center, the video decoder equipment restores the video signal to the data receiver, and the data acquisition, transmission and summary can be completed.

The oilfield remote video monitoring center is set in the oilfield production management center, and the computer controls the front-end monitoring points in an all-round way through the video monitoring platform. The system is equipped with a disk array for 24-hour all-day video and video data storage and is connected to the computer network, so that the system has the functions of monitoring, recording, saving, playback and alarm.
