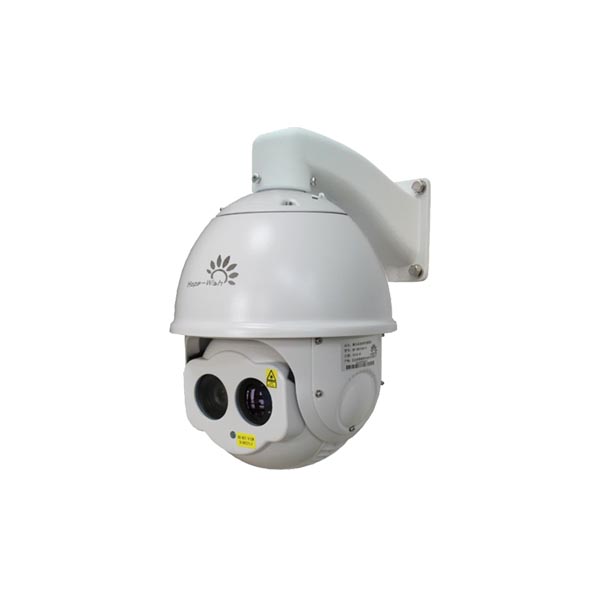

Dual-band thermal imaging temperature measurement high-speed ball DTVC4200

Dual-band thermal imaging temperature measurement high-speed ball DTVC4200

HP-DTVC4200 series dual-band thermal imaging temperature measurement high-speed ball is an optoelectronic product specially designed for temperature measurement applications. It is developed for non-contact temperature measurement requirements and can perform large-area, accurate and efficient temperature measurement.
  Details

Product introduction:


HP-DTVC4200 series dual-band thermal imaging temperature measurement high-speed ball is an optoelectronic product specially designed for temperature measurement applications. It is developed for non-contact temperature measurement requirements and can perform large-area, accurate and efficient temperature measurement. The product is based on the accurate temperature measurement technology of thermal imaging, which can timely alarm the over-temperature/low-temperature point, and assist the staff to implement rapid intervention methods and emergency measures. It can be widely used in temperature monitoring scenarios in industrial links that require temperature control, and temperature measurement of key nodes in power transmission networks.


Thermal imaging is developed based on the fifth-generation uncooled infrared technology and infrared optical technology. It adopts a high-sensitivity uncooled vanadium oxide focal plane imaging detector, a miniaturized infrared lens designed based on AS optical technology, and advanced digital circuits and image processing algorithms. Provides fine and smooth images. The visible light adopts a miniaturized all-in-one machine, which has the characteristics of fast zoom speed and automatic focusing, and the volume and weight of the whole machine are greatly reduced.


The product adopts the high-speed ball design concept as a whole, the structure is simple and reliable, compact and exquisite; the positioning accuracy is high, the speed is fast, the start and stop are stable, and the control is convenient. With multi-point target preset, memory, automatic cruise and other functions; can be positioned arbitrarily to achieve all-round blind spot monitoring; can automatically adapt to the brightness of the environment and automatically adjust the distance of the target and the size of the image, suitable for all-weather day and night 24-hour images collection and monitoring. The internal industrial-grade embedded control electronic system realizes the high-stability control of zoom, focus, video switching, and pan/tilt pitch/rotation for high-definition visible light and infrared thermal imaging dual-band cameras. The overall shell is made of super-strong aluminum alloy to achieve IP66 protection level, to ensure long-term operation of the equipment in harsh field mirrors.


The built-in GPU chip supports deep learning algorithms, and can support a variety of behavior analysis algorithms and target detection algorithms, effectively improving the detection accuracy.



Features:


1) Temperature measurement range: -20℃~+120℃ (optional -20℃~+550℃);


2) Temperature measurement accuracy: ±2°C or 2% of the range, whichever is the maximum value;


3) Multi-dimensional perception: support image scale; support access to multiple sensors;


4) It integrates infrared thermal imaging, high-definition visible light, video coding, gimbal shield, and control electronic system, with modular design, high integration, and easy installation and maintenance;


5) Built-in GPU chip, supports various detection algorithms such as area intrusion, entering/leaving area detection, people gathering detection, loitering detection, item leftover, item picking and so on;


6) The thermal imaging temperature detection sensitivity is better than 40mk, which is higher than the conventional products, obtains more delicate picture quality, and is less affected by fog, rain and snow;


7) Unique AS optical design and high-precision opto-mechanical design, excellent imaging quality;


8) Excellent non-uniform image correction technology with good image uniformity and dynamic range;


9) Driven by precision motor, the response is sensitive, the operation is smooth and stable, the accuracy deviation is small, and the image is free from jitter;


10) Support three-dimensional intelligent positioning function, which can realize click tracking and zooming;


11) IP66 protection, TVS4000V lightning protection, can adapt to various harsh environments.



Application scenarios:


Mainly used in temperature measurement, perimeter control and fire prevention scenarios, such as temperature measurement and fire warning monitoring scenarios such as carbide and petrochemical pipelines, pool manufacturing, power grids, etc.; perimeter prevention monitoring in safe cities, large venues, ports and terminals; oilfield security, high-speed All-weather day and night monitoring scenarios in harsh wild environments such as roads/railways, environmental protection, etc.

  Parameter

Model name

DTV C4200-20

DTV C4200-30

DTV C4200-50

Detection distance

1700m for cars, 720m for people

To the fire source 1000m (@2 × 2m)

2800m for cars, 1200m for people

To the fire source 1400m (@2 × 2m)

4200m for cars and 1640m for people

To the fire source 2000m (@2 × 2m)

Identify

distance

500m for cars, 200m for people

870m for cars, 350M for people

1200m for cars, 500m for people

Thermal imaging

1. Detector: the sixth generation uncooled focal plane array VOX detector

2. Resolution 384 × 288

3. Wavelength: 8-14 μm

4. NETD: 40MK (@25 ° C)

5. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 levels of thermal image enhancement adjustment

6. Pseudo-color polarity: 18 pseudo-color images

7. Image parameters: AGC automatic gain control, brightness, contrast

8. Electronic scaling: 1.0-8.0 × continuous scaling (step size 0.1) , support global hawk-eye map

9. Range ruler: Support Range Ruler

10. Bad Spot Correction: support bad spot correction function

11. Image Correction: supports manual correction, background correction, automatic correction interval, adjustable Gamma correction parameters

12. Strong Light Protection: supports protection against Sun Damage

13. Non-uniformity correction: automatic/manual

14. Lens: 20mm

15. Field of view: 18.5 ° × 14.0 °

16. Lens: 30mm

17. Field of view: 12.4 ° × 9.3 °

18. Lens: 50mm

19. Field of view: 7.5 ° × 5.6 °

Visible Light



1. Sensor type: back-lit ultra-low-illumination star-level CMOS

2. Minimum illumination: color: 0.0005 lux; black and white: 0.0001 lux; 0lux (IRON)

3. Lens: 4.7 mm-141mm 30x optical, 32X Digital

4. Image Processing: support white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic

5. Diurnal light: 0.4-0.75 um visible spectrum window and 0.8-0.95 um near-infrared spectrum window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light

Video and audio

1. Thermal image resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240

2. Visible light resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240

3. Video Coding: H. 265/h. 264/MJPEG, supports multiple streams

4. Video rate: 32kbps ~ 16Mbps

5. Audio Coding: G. 711A/G. 711U/G726

6. Image Flip: left/right/up/down/diagonal

7. OSD settings: Support Channel name, time, cloud position, field of view angle, focal length of OSD display settings, support preset bit name settings

Temperature measuring function

1. The temperature range: -20 ° C ~ + 120 ° C, -20 ° C ~ + 550 ° C

2. Temperature measurement error: ± 2 ° C (or ± 2% of the range to take the maximum)

3. Temperature Measurement: full-screen temperature information back, point, line, surface, irregular areas, while detecting 16

4. Accuracy Correction: support temperature parameter correction settings, including temperature correction, emissivity, atmospheric transmittance, humidity

5. Over-temperature alarm: support reserved switch volume alarm output, manual/automatic linkage fire fighting system and broadcast system

6. Alarm log: real-time record the temperature data of each object, automatically generate the trend curve, automatically store the temperature data, image snapshot and video when the alarm is triggered, set up and record the related log, video real-time storage, playback (with professional software)

Intelligent function

1. Firework identification: supports flame identification, smoke identification, smoke identification, effectively reduce the fog on smoke identification false alarm

2. Intelligent Analysis: support for intrusion detection, cross-border detection, entry/exit zone detection, movement detection, loitering detection, people gathering, rapid movement, target tracking, item legacy, item retrieval; Person/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, vehicle filtering function

3. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking

4. Intelligent Information Fusion: support for 512 AR intelligent information fusion, Fire Point, intelligent analysis video identification information fusion, support azimuth angle, field of view, focus, multiple information fusion

5. Image Fusion: support 18 dual-light fusion mode, support picture-in-picture function

6. Alarm management: Support Alarm Capture Upload

Enhancements

1. Ranging: support passive ranging;

2. Camera diagnostic function: Support Network Alarm, support IP conflict alarm, support illegal access alarm, support SD card abnormal alarm, video occlusion alarm, anti-sun damage

3. Life-cycle management: Health Index record function, support working time, shutter times, working temperature, limit temperature, zoom lens and head motor working time, etc.

4. Support for continuous transmission off-line

5. Power-off memory: support can restore the position before power-off, pre-position state, cruise state, line scan state

6. Remote Maintenance: with fault query, self-check, remote restart function; online upgrade, remote upgrade

7. Configuration File: Support Configuration File Import, export function

8. Web Access: support WEB full-featured configuration, remote online upgrades

Security control

1. Support illegal access alarm: illegal access times, lock time can be set

2. Support three levels of user rights management, administrators, operators, ordinary users

3. Security mode: authorized user name and password, support IP whitelist and blacklist, Mac whitelist and blacklist

4. User error logon lock

Tripod head shield

1. Rotation Speed: 0.1 °/s ~ 200 °/s, support focal speed adaptation

2. Rotation angle: Horizontal: 360 ° continuous rotation; pitch: -90 ° ー + 5 °

3. Structural materials: spherical design, high strength aluminum alloy material

4. Surface spraying: PTA three anti-corrosion coating, anti-corrosion

5. Preset position cruising: Preset Position 3000, support 16 cruising routes, each can support 256 preset position

6. Watch function: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan

7. Support for 3D box selection and scaling

8. Power-off memory: support can restore the position before power-off, pre-position state, cruise state, line scan state

9. Azimuth information: support Angle Query/real-time return and location; support camera field of view return and location

10. Zero-point correction: support north-to-zero remote correction function

Interface

1. Communication: 1-way RJ4510M/100M Adaptive Ethernet port (1-way alarm input, 1-way alarm output; 1-way audio input, 1-way audio output)

2. Power supply: DC24V ± 20%

3. Protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols

4. Development Interface: support HP-SDK secondary development

Environmental adaptation

1. Working Temperature: -40 ° C ~ + 60 ° C

2. Working humidity: ≤95%

3. Protection level: IP66

4. Anti-salt spray: at PH 6.5-7.2, continuous spray 96 hours, no change in the surface

5. Surge protection: Interface Circuit built-in surge protection, 6000V lightning protection

Volume weight

1. Weight: 5 kg

2. Size: Φ230(mm) × 325(mm)

3. Installation: Wall Mount/hoisting
