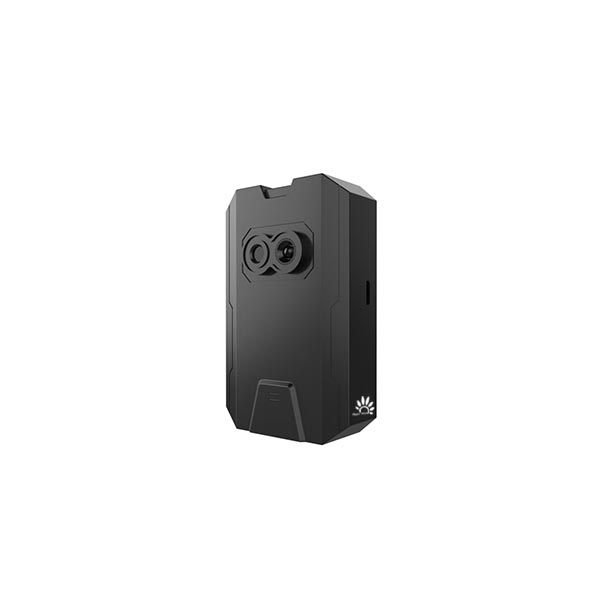

Body temperature screening machine HP-KCS1100

Body temperature screening machine HP-KCS1100

HP-KCS1100 body temperature screening machine is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, and is a non-contact human body temperature measurement product specially designed for epidemic prevention and anti-epidemic. The product has a built-in high-definition visible light and infrared thermal imaging core, which can realize 24-hour non-contact online monitoring and accurate temperature measurement. The fuselage is compact and flexible, and can achieve accurate temperature measurement within the range of 1m to 4m.
  Details

Product introduction:


HP-KCS1100 body temperature screening machine is based on the latest fifth-generation uncooled infrared technology and high-definition visible light imaging technology, and is a non-contact human body temperature measurement product specially designed for epidemic prevention and anti-epidemic. The product has a built-in high-definition visible light and infrared thermal imaging core, which can realize 24-hour non-contact online monitoring and accurate temperature measurement. The fuselage is compact and flexible, and can achieve accurate temperature measurement within the range of 1m to 4m.


Infrared thermal image adopts high-sensitivity 160×120 resolution 12μm ultra-fine resolution uncooled focal plane imaging detector and miniaturized infrared lens, advanced digital circuit and image processing algorithm can provide delicate and smooth images; visible light adopts full HD color Black and white dual-mode low-light CMOS sensor and small high-definition day and night high-definition lens, the volume and weight of the whole machine are greatly reduced, which brings great convenience to installation and deployment.



Features:


1) Accurate temperature measurement from 1m to 4m, the accuracy is better than ±0.3℃, and the temperature drift is automatically corrected;


2) Non-contact temperature measurement, multiple people can measure temperature at the same time, allowing a pass rate of 300 people/min;


3) High-quality infrared detectors, advanced temperature measurement algorithms, industrial-grade quality, and strong environmental adaptability;


4) Automatic tracking of face temperature measurement, over-temperature alarm, support for mask detection and people counting;


5) HDMI interface, plug and play, fast deployment, easy maintenance;


6) It has an alarm output interface, which can be linked to alarm equipment;



Application scenarios:


It is widely used in scenic spots, schools, hospitals, subways, supermarkets, office buildings, industrial parks and other entrances for epidemic prevention and temperature screening.

  Parameter

Model name

KCS1100 integrated body temperature screening machine

Thermal imaging

1. Detector: fifth generation uncooled focal plane array VOX detector

2. Resolution: 160 × 120

3. Wavelength: 8-14 μm

4. Focal length: 1.9 mm

5. NETD: 50MK (@25 ° C F1.0)

6. Field of view: 57 ° × 44 ° (F1.9 mm, no thermal lens)

7. Image enhancement: excellent image fusion algorithm, with 18 fusion modes

8. Pseudo-color polarity: 18 pseudo-color images, hot black/white two polarity



Temperature measurement

1. Temperature range: 28 ° C ~ 45 ° C

2. The precision of temperature measurement is ± 0.3 ° C (33 ° C ~ 40 ° C) , and the rest of temperature is ± 1 ° C

3. Accurate temperature measuring distance: 1M ~ 4m

4. Temperature Measurement: at the same time support 10 people-12 people temperature

Visible Light



1. Sensor type: 1/2.7 inch star-grade CMOS, integrated ICR dual filter day and night switching

2. Pixel: 1920 × 1080

3. Focal length: 3.6 mm

4. Minimum illumination: color: 0.01 lux@black and white: 0.001 lux@IR 0Lux

5. Face snapping: multi-people walking through (0.8 m/s) face snapping function, can simultaneously (frame) of 20-30 face detection and capture

Electrical interface

1. Alarm output: 1 way, can be linked with access control system

2. Speaker: Play Voice Alarm

3. HDMI: Route 1

4. USB: 1 Way (connect mouse for interface operation)

5. SD card slot: 1(built-in 32GB memory card, can store 200,000 snapshots)

6. RJ45:1

Power consumption

1. Supply voltage: DC 12V ± 15%

2. Power consumption: ≤4w

Accessories

1. Power Adapter: 1

2. HDMI cable: 1

3. Mouse: 1

Environmental adaptation

1. Operating Temperature: 10 ° C ~ 45 ° C

2. Working Humidity: relative humidity ≤85%

Volume weight

1. Weight: 440g

2. Size: 90mm × 47mm × 130mm (length × width × height)
